UTE BACKS CANOPYS -Guide for storeman @ JJ

UTE BACKS CANOPYS -Guide for storeman @ JJ


Canopys/Ute Back  after being dismantled are located at back of warehouse on large pallet by dismantlers
it is storemans task to prepare for imaegs , do quality check , take images and locate canopies /ute backs


SET UP /PRE TRAINING
Need to be able to
use apps camera and save images to pinnacle ( see seperate guide how to do this )
drive high reach forklift to stack 3 high if required


TOOLS REQUIRED
Need camera
Needs images app camera - so can scan tag and add images
card tag - to note details

TASK STEPS
Canopys./Ute backs will be located in allocated spot
Canopys./Ute backs should be on large pallet already -If not see guIde in FAQ
Canopies /Ute backs should have tag sticker on the item - If not see guIde in FAQ
Clean out any Rubbish so will be more attractive in sales images

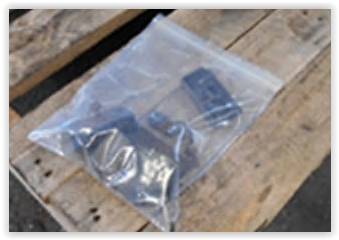

Canopies should have bolts - brackets - look closely  for them if you cant find -make sure these are secured properly so we dont lose them

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

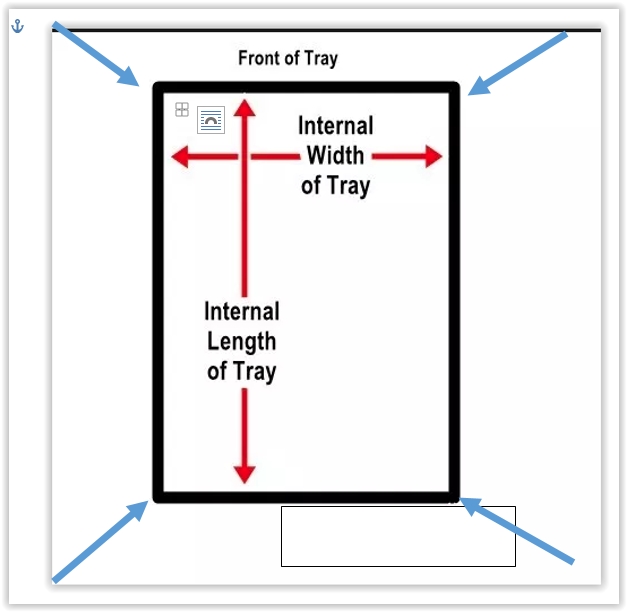

MEASUREMENTS   ( FOR UTE BACKS ONLY , NOT CANOPY ) -nOTE ON TAG
Take measurements in MM of
width of ute back
length of ute back
height of head board ( the frame behind cab )


IMAGES ( these are important to sell the business and the item - no mess in the background )
Have in clear open area , have the item on the ground
UTE BACK
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IMAGES scan bar code and save images into pinnacle
the images sell the item - make them look attractive and clear
show any items so buyer is confident to purchase

For canopy and  ute back
images from all 4 angles


close ups of
anything unique
steel mudflaps

close up of bolts /brackets



If pull out trundle tray - take image of this extended and close up of this closed

-----------------------------------------------------------------------------------------------------------------------------------
NOTES /DESCRIPTION - Note this on tag
ITEM TAG NUMBER
MODEL
LOCATION - Where you put it
measurements as per guide above
with or without bolts and brackets

for Ute back
note - if trundle tray note with or without keys

for canopy
brand


--------------------------------------------------------------------------------------

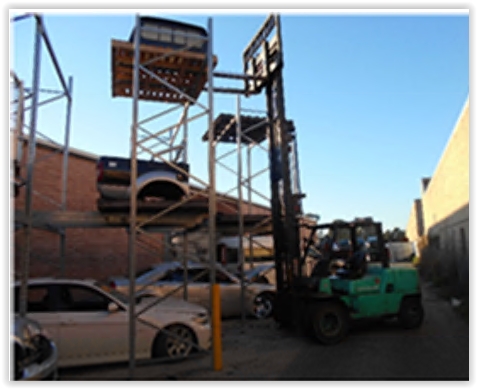

LOCATION
These are usually located on highest rack
do safety check make sure secure on pallet
note item location on tag



-----------------------------------------------------------------------------------

Enter all details into pinnacle as required

--make sure to save location
--confirm description is correct

Put this tag on operations spike once done so operations manager can enter in details

----------------------------------------------------------------------
OPERATIONS MANAGER
Check all is ok - action if missing items
File tag as required

----------------------------------------------------------------
FAQ
What if canopy/ute back isnt on pallet ??
- advise operations manager in writing
i.e
simple note
stock number xxx , isnt on pallet and leave it and dont do until dismantler sorts this


What if canopy/ute back does have tag /sticker?
- advise operations manager in writing
i.e simple note
stock number xxx , does have tag sticker and leave it and dont do until dismantler sorts this
